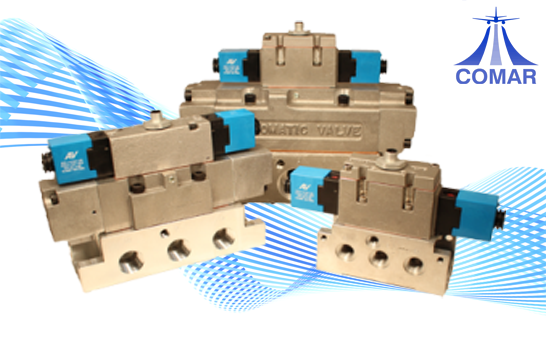

SAE Spool Valves

Valves :

  • Conforms to SAE J2051 specifications for series 125, 250 and 1000.
  • Flow Range of 2 to 20 Cv.
  • Complete range of bases and operators available.
  • Specific application needs? Consult Comar.



We can have it built for you.



Tapered Tee-Seal.......Eats Dirt



Bidirectional tapered Tee-Seal eliminates sticking problems.

  • Flexes to clean spool
  • Mechanically Locked
  • No Spiral Twist
  • No Extrusion
  • Air Line Sediment is Wiped Away.



Tested tough and proven reliable according to SAE specifications:



Rust and water injected every 864,000 cycles for 20 million cycles.

Solednoid... Guaranteed Against Burnout

  • Three-way pilot uses full air line pressure to shift the valve.
  • Pilot is internally supplied when the pressure at port one is 35 to 150 PSIG (240 to 1030 kPa).
  • Coil is hermetically sealed as an integral watertight molded unit.
  • Intrinsically safe and explosion-proof versions available.
  • Push Non-Locking Override is standard. (Extended Turn and Turn-Locking available)



Products Certified To:



  • CSA - (C22.2 and UL STD 429)
  • Factory Mutual - Explosion Proof Environments
  • ATEX - Explosion Proof Environments
  • CE - EMF and Low Voltage Directives
